Pool Table Pocket Plugs, Inserts, Carom Conversion


Pool Table Pocket Plugs, Inserts, Carom Conversion

A member was asking how he can convert his 8 foot billiard table to have smaller pocket openings. I was doing some research on commercially available products, and this post is the results of that research. These are the ONLY commercially available pocket reducers on the market today.

You may also check out "removable billiard table pocket shims" by following the link to my other forum post.

Here is what we've put together after a few hours of research.

Comercially Available Pool Table Pocket Inserts

"Practice Pro Pocket Reducers" simple pool table pocket reducer:

Buy from Amazon.Com

These reduce the opening of the pocket by 30% of their original openings. The manufacturer says the following about this product:

  • Adjusts to fit ALL pockets on ALL tables.
  • Improves aiming skills and concentration at all levels.
  • Forces you to be more acurate.
  • Reduces pocket size by 30% on average.
  • Adjusts to fit ALL pockets on ALL tables
  • The fastest way to improve your game. (billiardsforum says: that's debatable...)

Practice Pro Pocket Reducers come in a set of six with a handy carrying pouch with draw-string, and they REALLY do work, reducing pocket width by an average of 30% by extending the natural line and angle of the existing cushion.

Buy from Amazon.Com

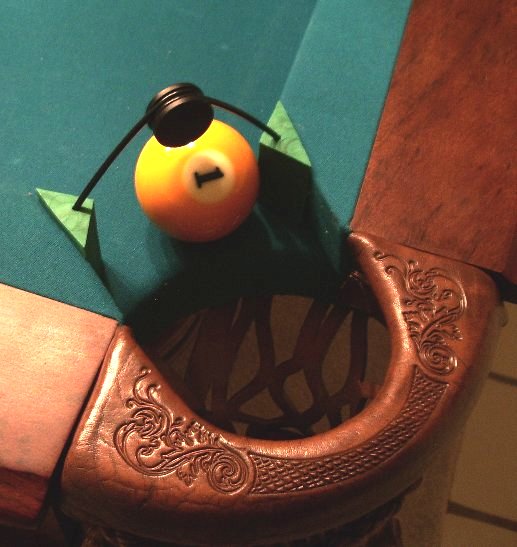

Another image with billiard balls in front:

Another image from above the pocket:

Buy from Amazon.Com

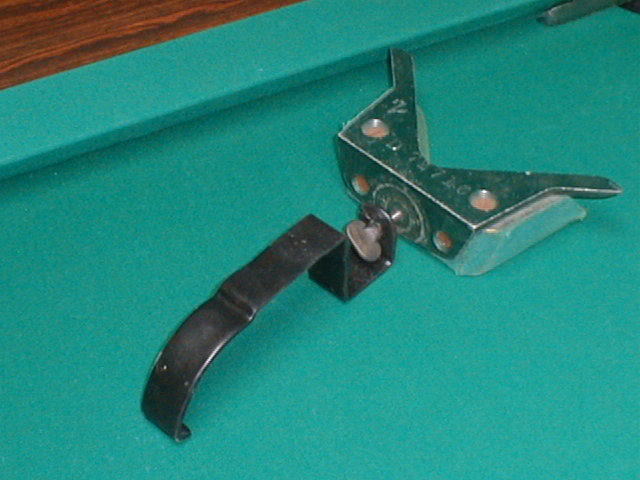

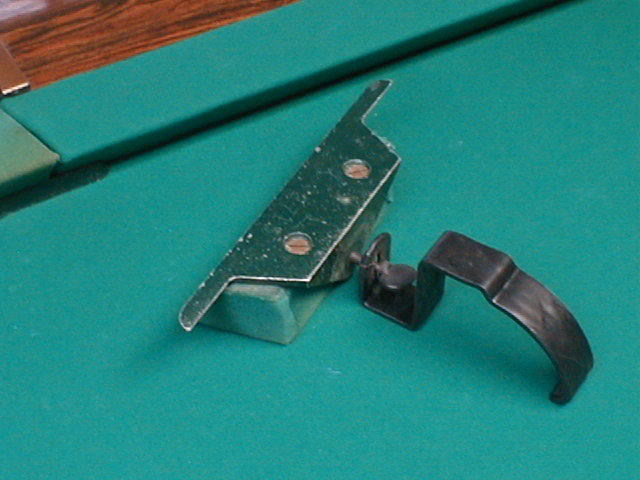

This next set of pool table pocket shims are homemade ones I found on the net.. The owner said they were given to him, and he doesn't know how they are made, but he provided some good images though.

Corner pocket pool table pockt plug / reducer - fully blocked or closed:

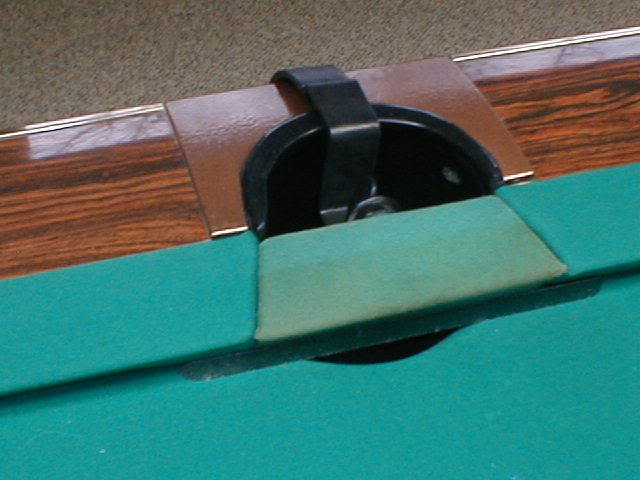

Side pocket pool table pockt plug / reducer - fully blocked or closed:

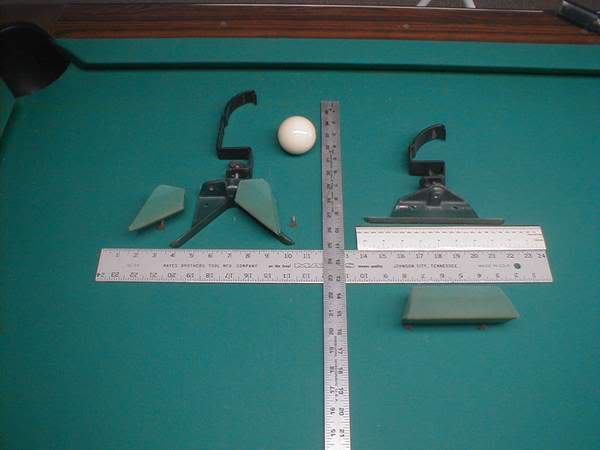

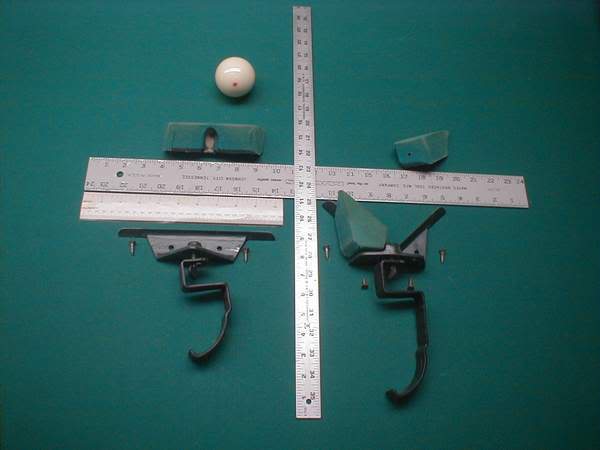

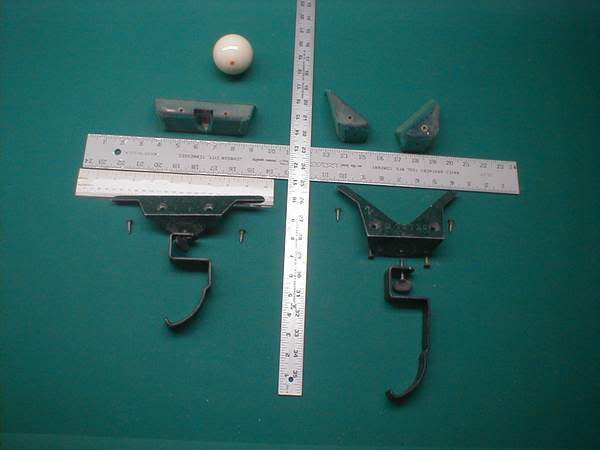

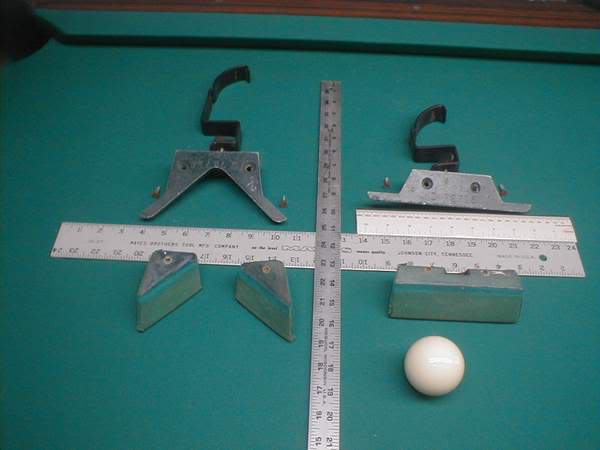

And for the measured images - with the billiard table pocket plugs opened up:

Even though we don't see a lot of pool table pocket reducers on the market, lots have been patented. Here are a few, though there are none are on the market like them:

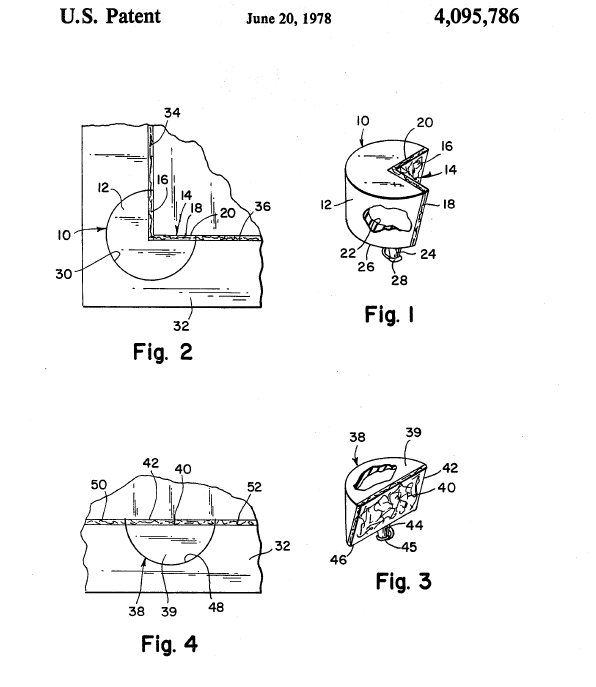

U.S. Pat. No. 4,095,786 issued to Foley, Leo D. on Nov. 02, 1976 discloses a pocket plug for pool tables which includes a pair of angular members joined together by a welt and a spring assembly.

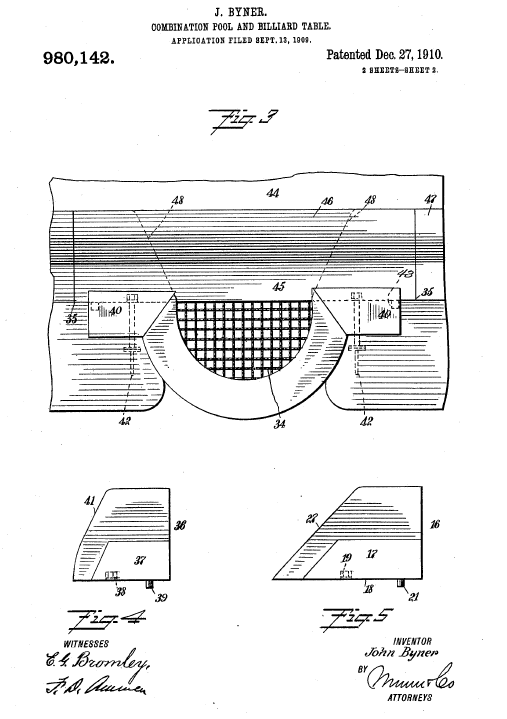

U.S. Pat. No. 980,142 issued to J. Byner on Dec. 27, 1910 teaches a combination pool and billiard table having a plurality of cushion blocks which are inserted into the pool pockets and are retained by notches provided adjacent thereto.

U.S. Pat. No. 1,894,989 issued to P. Hansen on Jan. 24, 1933 reveals a plug for pool table pockets including a cushion member and a threaded rod assembly which engages an internally threaded ferrule installed in the wall of the pocket.

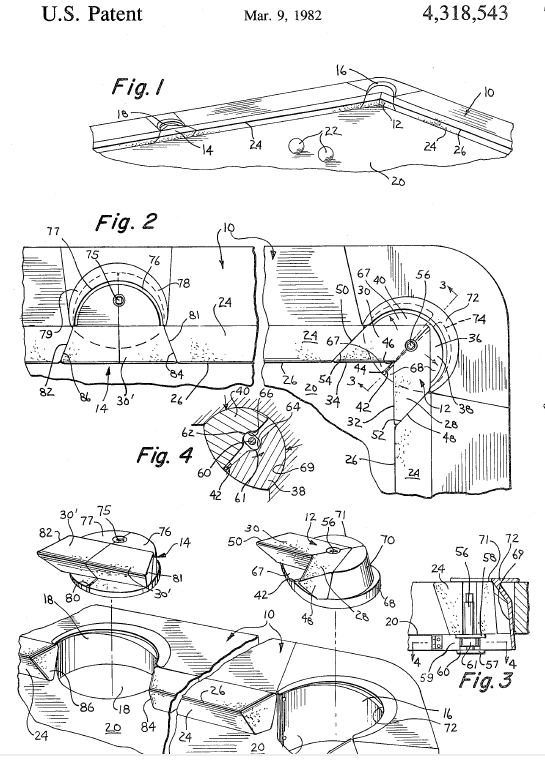

...and one more:

Carom Table Conversion Kits

To close off your pockets completely and use your pocket billiards table as a carom table, check this out:

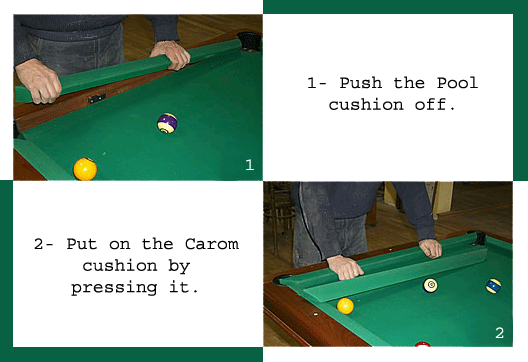

Full-Rail Billiard to Carom Table conversion kit...

This one is sold on a spanish billiard retail site. (bilhares.com)

Billares Carlos Teófilo SL - Les Franqueses del Vallés, Barcelona
C. Aragó 18, Barri Bellavista 08521 Les Franqueses del Vallès Barcelona
From: 9:00 to 14:00 / 16:00 to 19:00, form Monday to Friday and from 9:00 to 14:00 on Saturday
+ (34) 938 401 541 or + (34) 938 443 823
francisco.belmonte@carlos-teofilo.com

Billares Carlos Teófilo SL - Fuenlabrada, Madrid
Calle Sierra Magina 1, Pol. Ind. De La Vega, 28946 Fuenlabrada - Madrid
From: 9:00 to 14:00 / 16:00 to 19:00, form Monday to Friday and from 9:00 to 14:00 on Saturday
+ (34) 916 159 162 or + (34) 914 922 780
jose.fernandez@carlos-teofilo.com

Carlos M. M. Teófilo, Lda - Loulé, Faro
E.N. 125, nº 218 A Celões - Quatro Estradas 8100-287 LOULÉ - PORTUGAL
From: 9:00 to 12:30 / 14:00 to 19:00, from Monday to Saturday
+(351) 289 358 300 / +(351) 939 125 037 or +(351) 289 358 300
anabela.rodrigues@carlos-teofilo.com

Carlos M. M. Teófilo, Lda - Sintra, Lisboa
E.N. 9, Km 18 - Armazéns Palmeira, Pavilhão B Fervença 2705-906 SINTRA - PORTUGAL
From: 9:00 to 12:30 / 14:00 to 19:00, from Monday to Saturday
+(351) 219 609 330 (6 Lines) or +(351) 219 609 335
E-Mail:Comercial: comercial@carlos-teofilo.com
Bilhares Brunswick: brunswick.billiards@carlos-teofilo.com

The system that most used for this is actually a conversion kit to turn a billiard table or pool table into a carom table. Brunswick patented and originally made the pocket inserts - they were called "carom plugs". They were sold with some Brunswick billiard tables back in the day so that the buyer would effectively have both a carom table and a billiard table (I guess that was back when the two versions were similar in popularity).

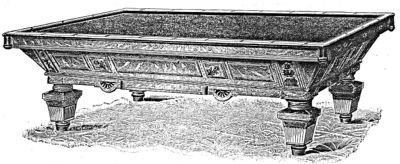

1 - Brunswick - sold with their Manhattan Table in 1896:

The Manhattan is well adapted for private residences. In rich simplicity of design, in correct lines and proportion, and in the true artistic harmony and elegance. The Manhattan is peculiarly desirable. The style of finish is a combination of quarter-sawed oak and handsome figured burl ash. The Manhattan can, however, be made up in other woods as desired. This table is furnished as carom or pool or both combined, and is supplied with the finest of Vermont slated bed from our own quarries, genuine imported Simonis cloth, the incomparable Monarch quick cushions and a first class outfit of everything complete. The legs of our tables, besides being joined with wooden dowels, as is customary, are fastened with a long iron bolt passing through the entire length of the leg to the top of the head block., thus inspiring positive solidity not otherwise obtainable. This is a very important feature. Tables are supplied with our adjustable carom plus with iron fastenings. The only perfect invention of its kind in the market.

Pool Table Pocket Plugs, Inserts, Carom Conversion

Replies & Comments

  1. billiardsforumTerri Erickson on 7/2/2010 6:30:05 PM

    I am interested in purchasing two side pocket plugs / pocket reducers for my pool table.

  2. billiardsforumcarl.johnson on 12/1/2010 1:10:56 PM

    I'm an 81 yr. old former billiard player who after 50 yrs. wants to start playing caroms (and more) once again. Problem is, there are no pocket-less tables anywhere around here. I have been looking for years, for pocket inserts to no avail. Is there such a thing on the market today, and if so, how can I go about making contact with the vendor? From what I've read on this website, it seems my search could have a happy ending. I would sincerely appreciate a reply at your earliest convenience.

    Thank you,
    Carl Johnson
    cljohnson1@att.net

    26740 Cash Ct.
    Leesburg, FL 34748
    (352) 365-2473

  3. billiardsforumsophie hart on 12/4/2010 1:05:30 AM

    Wow! I must say it is a very informative forum. I have been searching everywhere on these pool table pocket reducers and this topic really helped with comprehensive research.

    But, I am unable to decide which type of billiard table pocket reducers should I go for. Can you recommend one for me?

  4. billiardsforumMitch Alsup on 12/4/2010 5:31:24 PM

    You will find that a table with tight pocket is even harder than a table with loose pockets and pocket inserts. The difference is how the ball rattles out of the pocket by rebounding off the leads and shelf.

  5. billiardsforumJohn Foster on 2/6/2011 8:54:25 AM

    I am interested in the carom conversion kit offered by Carlos Teofilo in your post.

    Do You know anyone who speaks english who has purchased this kit and would be willing to talk to me about it?

  6. billiardsforumDan Bennicas on 2/14/2011 9:11:03 PM

    My name is Dan Bennicas, and I am a pool player, retired Archchitectual Desigener and Inventor.

    I have invented carom pocket inserts that will function on most pocket billiard tables.

    They are adjustable on both the corners and on the sides. They adjust to height, width, depth, and angle of the existing pockets.

    Installation and removal is simple and quick, only taking about 3 minutes.

    This will be coming to market soon!

    Do you think this will make 3-Cushion billiards popular?

    Comments welcome!

  7. billiardsforumDan Bennicas on 4/19/2011 11:39:52 AM

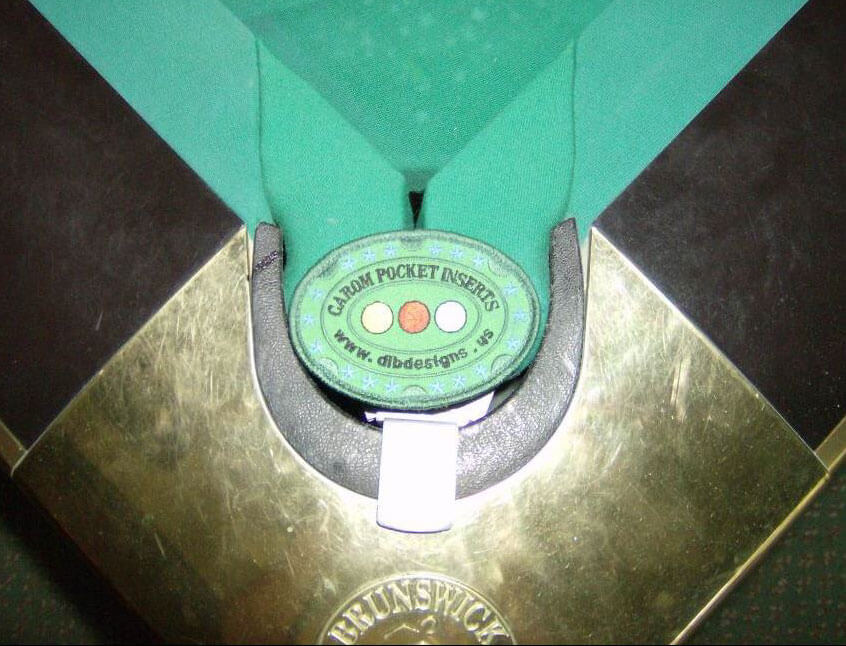

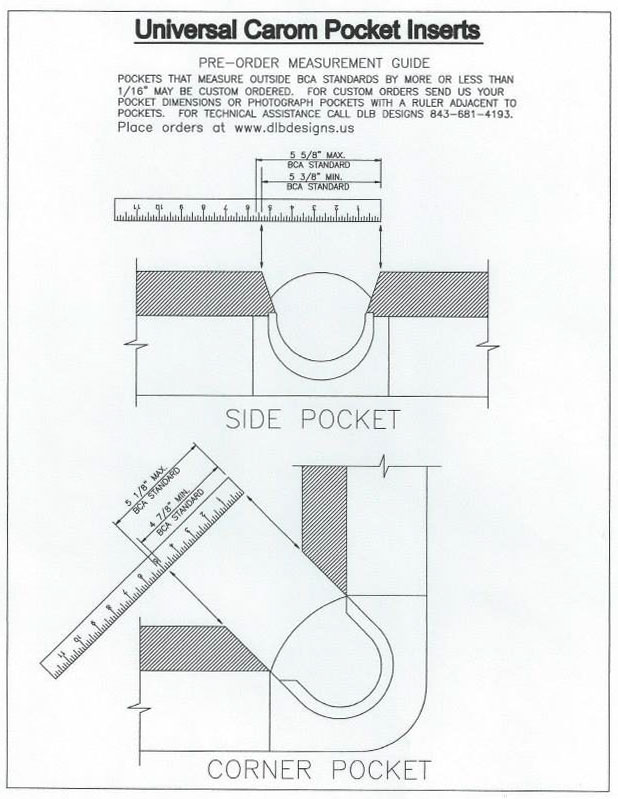

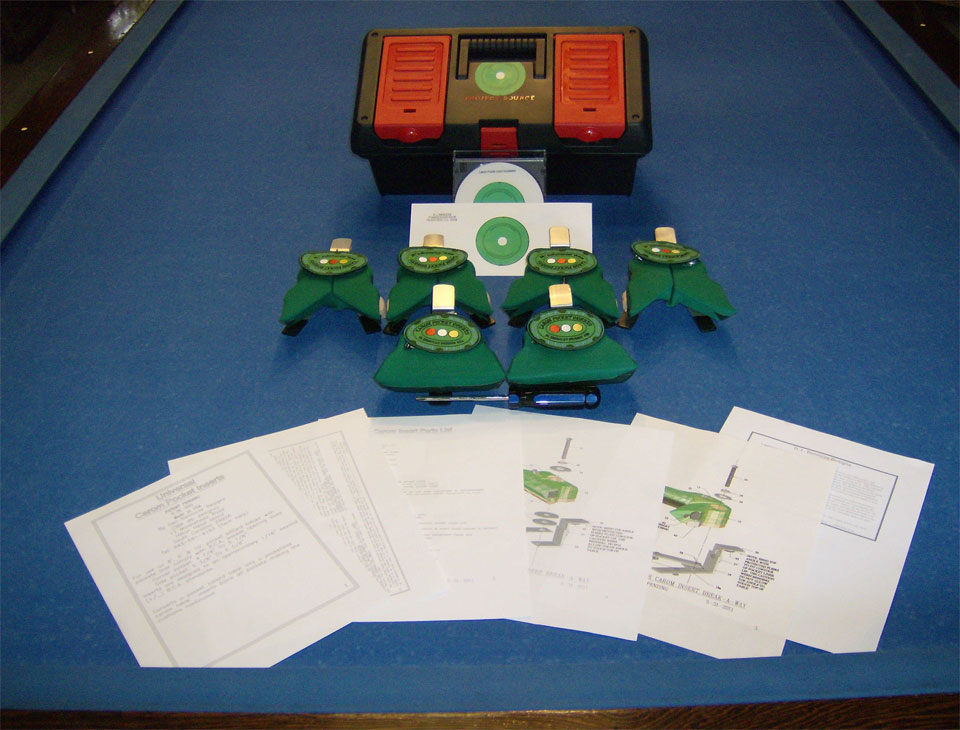

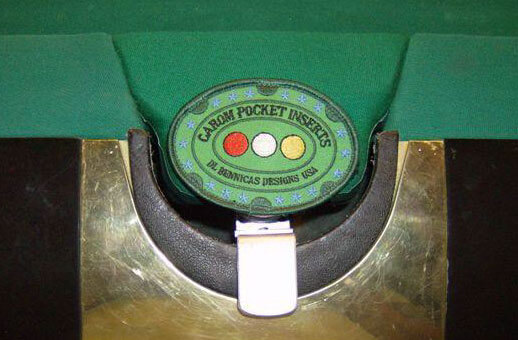

    Here are some pictures of my carom pocket inserts:

    You can reply here for more info, and I'll update with more information shortly.

    Thanks,
    Dan B.



  8. billiardsforumEl Principe Jose on 10/13/2011 4:00:50 PM

    I would like to know how much is the cost for the set of pool table pocket plugs for converting a normal pool table into a carom table?

  9. billiardsforumEl Principe Jose on 11/8/2011 4:11:32 PM

    I am checking in again in case someone actually knows where can I buy plugs or inserts for my pool table pockets to convert my pool table to a carom billiard table.

    I live in Phoenix, AZ.

  10. billiardsforumTab Pranee on 10/11/2012 11:15:30 AM

    I want the billiard table pocket plugs for carom table conversion. Do you sell them?

  11. billiardsforumRamin Gilani on 11/10/2012 7:33:36 PM

    I also need to know if anyone is selling the pocket plug kit for pool table conversion to a carom table.

    If so, where can I buy them, and how much do they cost?

  12. billiardsforumLeon Tran on 1/2/2014 7:26:57 AM

    Is there any way to get the full rail carom table conversion kit to the US? I would like to know if it is possible to purchase and how.
