Kasson Pool Table Assembly Manual


Kasson Pool Table Assembly Manual

I really need an installation manual for a Kasson pool table that we are trying to assemble. Anyone know where I can find one?

I bought the pool table in 2008. It was dissembled in late 2016 and my son in Colorado is trying to assemble it.

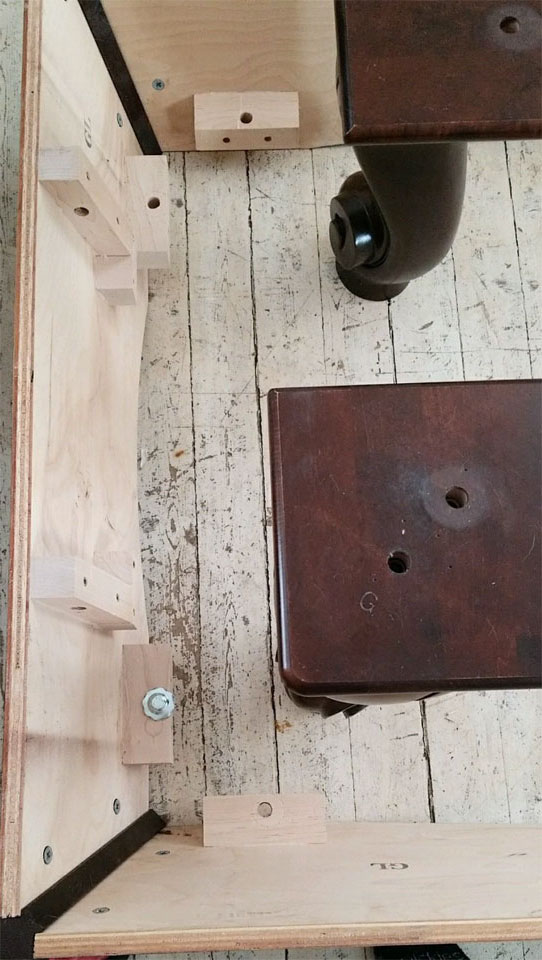

The only item he can find is a "GL" on the frame and he sent me this picture below .


This question relates to the following businesses:

Kasson Pool Table Assembly Manual

Replies & Comments

  1. Jim Lowrybilliardsforum on 3/22/2018 1:30:55 PM

    Hi Jim, Kasson went out of business a while back. I will check with some contacts I have, but would need to see the table and/or know the exact Kasson model name and/or number first so I have a point of reference for what I am asking for.

    Now that I see your photo, I can tell you that you are missing the square wood pieces from the leg gusset system. They are basically the brackets (pieces of wood) which attach to those two small pieces of wood on the frame. Once that is on, the pool table legs would attach to those brackets.

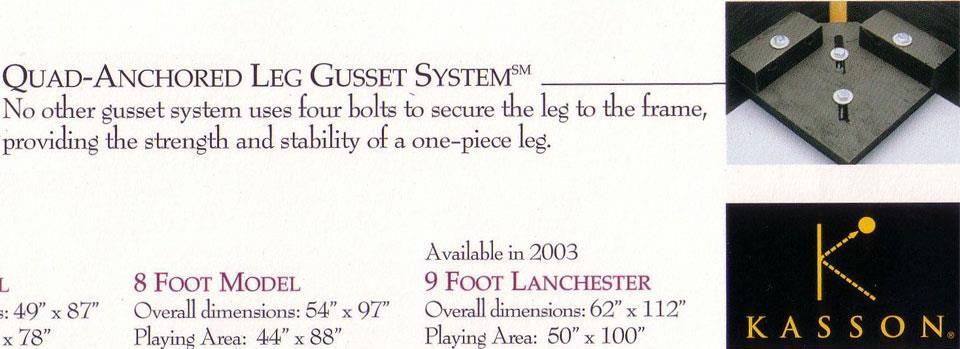

    Here is an example from a Kasson sales brochure: Looks identical to your setup, except it has the square pieces bolted on...

    Hope this helps, and hope you find your pieces.


  2. Jim LowryJim Lowry on 3/22/2018 11:40:03 PM

    Thank you, any idea where we look for them?

  3. Jim Lowrybilliardsforum on 3/23/2018 4:18:29 AM

    I don't. Again, Kasson is a defunct company, so you can't just call up and order some parts. You would have to have some made custom.
